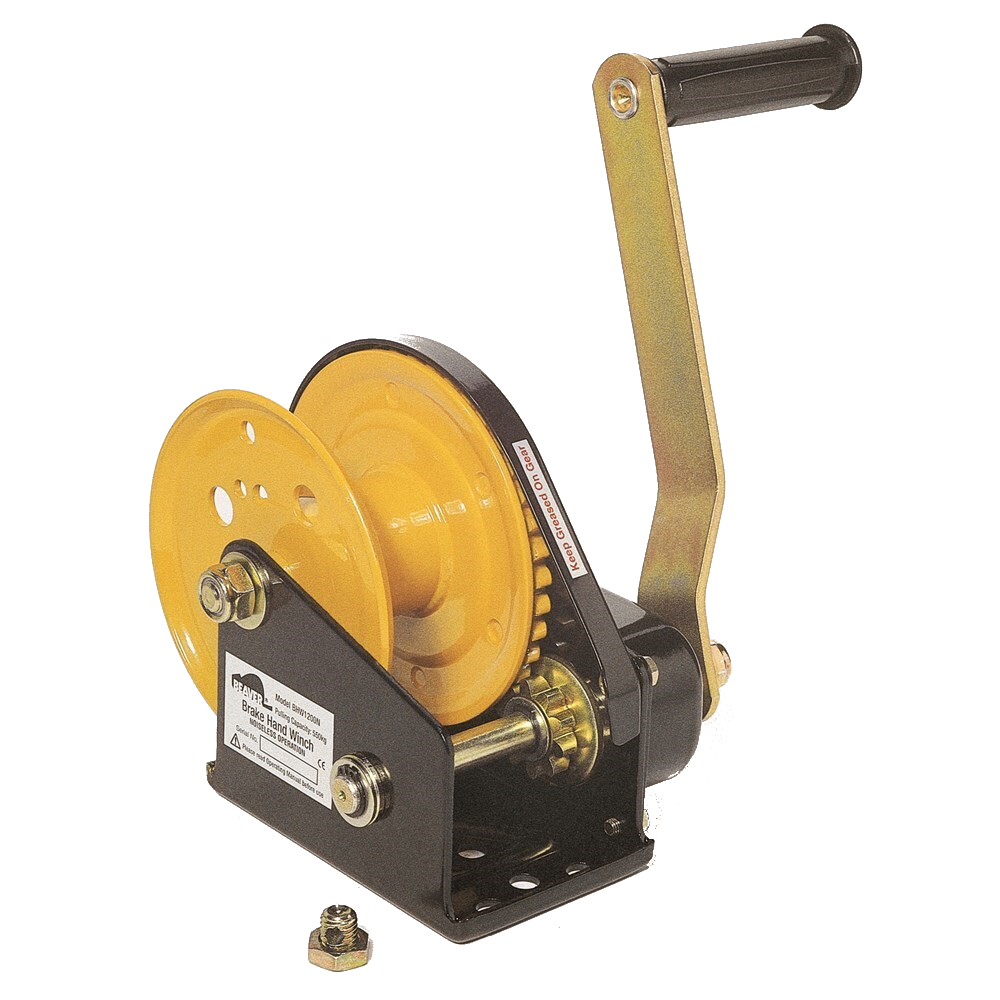

Hand Break Winch - 0.27t

SKU: BHW1200

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 1 Minimum Order Quantity 1

Calculate Shipping

The Beaver brake hand winches are available in 3 models, dividied by pulling and hoisting capacity.

Model No. Bare BHW1200 BHW1800  BHW2600
Model No. Wire Rope BHW1200R BHW1800R BHW2600R
Rated Capacity - Pulling 545kg/5.33kN 820kg/8.04kN 1200kg/11.76kN
Rated Capacity - Hoisting 270kg 410kg 600kg
Type of Brake Single Paw Double Paw Double Paw
Max Hand Force Req. 15kg 22kg 19kg
Gear Ratio 4:1:1 5:1 10:1
Hub Diamater 50mm 70mm 80mm
Handle Length 210mm 320mm 320mm
Unit Weight - Bare 3.8kg 8kg 10.3kg
Wire Rope Diameter 5mm 7mm 8mm
Wire Rope Construction 6x19 FC RHL 6x19 FC RHL 6x10 FC RHL
Grade of Wire Rope 1770 1770 1770
Wire Rope Finish Hot Dipped Galvanised Hot Dipped Galvanised Hot Dipped Galvanised
Wire Rope Storage Capacity 24m 26m 18m
Std Wire Rope Length 10mm 10mm 10mm

(BHW)

SKU BHW
Brand Beaver Brands
