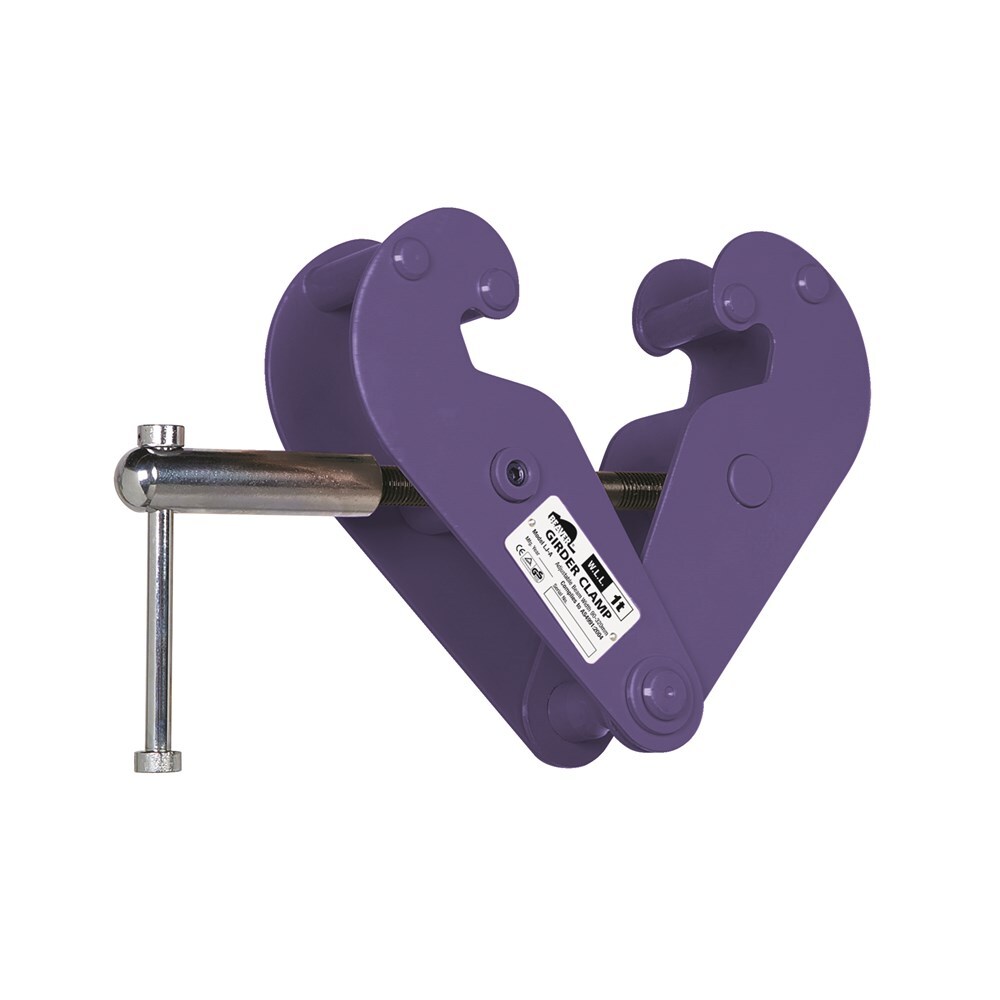

Purple Girder Clamp (1t WLL) - 230mm

SKU: 270010Y

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 2 Minimum Order Quantity 2

Calculate Shipping

The Beaver girder clamps are manufactured using a robust all-steel construction, and are esay and simple to mount for permanent or temporary mounting. These clamps are designed to provide a quick and versatile point for all yuor lifting, rigging, and hoisting needs, and comply to AS 4991.



Specifications:

  Product Code     WLL     Colour Code     Net Weight     Adjustable Beam Width     Model Type
270010Y 1t Violet 3.8kg 75-230mm YC
270020Y 2t Green 4.6kg 75-230mm YC
270030Y 3t Yellow 9.2kg 80-320mm YC
270050Y 5t Red 11kg 90-320mm YC
270100Y 10t Orange 17.2kg 90-320mm YC


All Beaver girder clamps are operationally tested to 150% of the working load limit, and come with individual test certificates. Each clamp also has an individial serial number stamped on the body of the clamp and also on the stainless steel identification plate. This number coincides directly to the test certificate of the product for quick and easy tracing and reference.


  Product Code     WLL     A (max)   B C D E F G (min) H K
270010Y 1t 246mm   186-350mm   66mm 4mm   215mm   90-133mm 44mm 20mm 14-21mm
270020Y 2t 246mm 186-350mm 74mm 6mm 215mm 90-133mm 44mm 20mm 14-21mm
270030Y 3t 320mm 232-455mm 102mm 8mm 255mm 143-195mm 75mm 22mm 30-34mm
270050Y 5t 320mm 242-455mm   110mm     10mm   255mm 145-195mm 75mm 28mm 30-34mm
270100Y 10t 320mm 268-480mm 118mm 12mm 275mm   133-185mm     66mm     38mm     34-35mm



(2700100Y)

SKU 2700100Y
Brand Beaver Brands
Shipping Weight 31.2500kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
