Girder Push Trolley Bolt (Green) - 1t x 203mm

SKU: 522010SC

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 2 Minimum Order Quantity 2

Calculate Shipping

Beaver push girder trolleys are fully adjustable to suit varying flange widths up to a maximum of 350mm with the simple addition or subtraction of spacers or nuts on a suspension pin, and are designed to suit 3S chain blocks. This trolley complies to AS 1418.20.

These girder trolleys are manufactured to have a lightweight but robust all-steel construction. The hand chain has a special corrosion resistance zinc dichromate (gold) finish. Anti-tilt blocks fitted as standard for additional safety. Beaver push close coupled trolleys are not designed for passenger elevator applications and must not be used for this purpose. Selection and calculation of the proper beam construction are the responsiblity of the user.

Each Beaver girder trolley has an individual serial number stamped on the stainless steel identification plate. This number coincides directly to the test certificate of the product (which is provided), for quick and easy tracing and reference. These products are also operationally tested to 150% of its rated capacity.

Technical Specifications:

  Product Code     Rated Capacity     Colour Code     Proof Load     Minimum Radius Curve     Net Weight
522010SC 1t Violet 14.71kN 0.9m 23.5kg
522020SC 2t Green 29.42kN 1m 39kg
522030SC 3t Yellow 44.13kN 1.2m 59.5kg

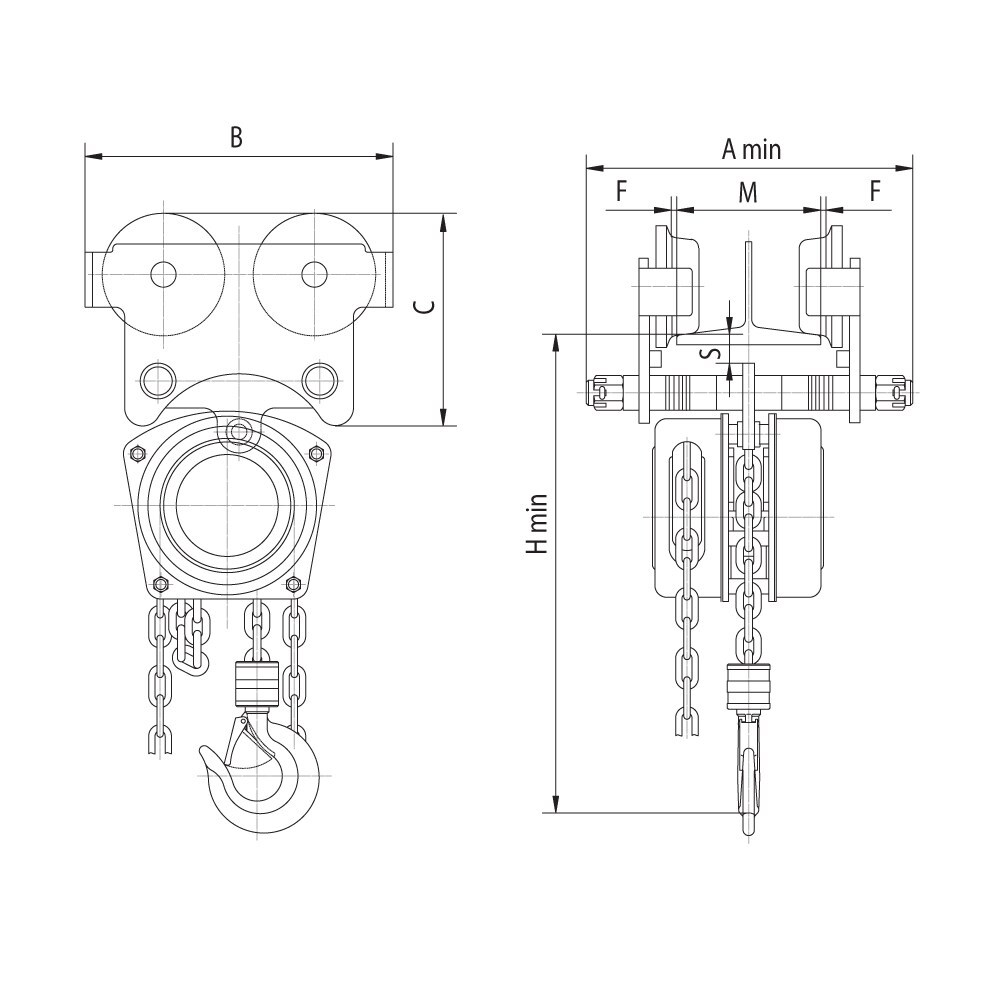

  Product Code     Rated Capacity   A B C H S F M
522010SC 1t   303mm     246mm     164mm     385mm     38mm     1.5-3mm   64-203mm
522020SC 2t 317mm 276mm 183mm 480mm 38mm 1.5-3mm 88-203mm
522030SC 3t 435mm 332mm 224mm 520mm 40mm 1.5-3mm   100-305mm



Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(522010SC)

SKU 522010SC
Brand Beaver Brands
Shipping Weight 31.2500kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
