Electric Pull-Lift Winch (0.25t) - 6 x 30m

SKU: BPL1025

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 1 Minimum Order Quantity 1

Calculate Shipping

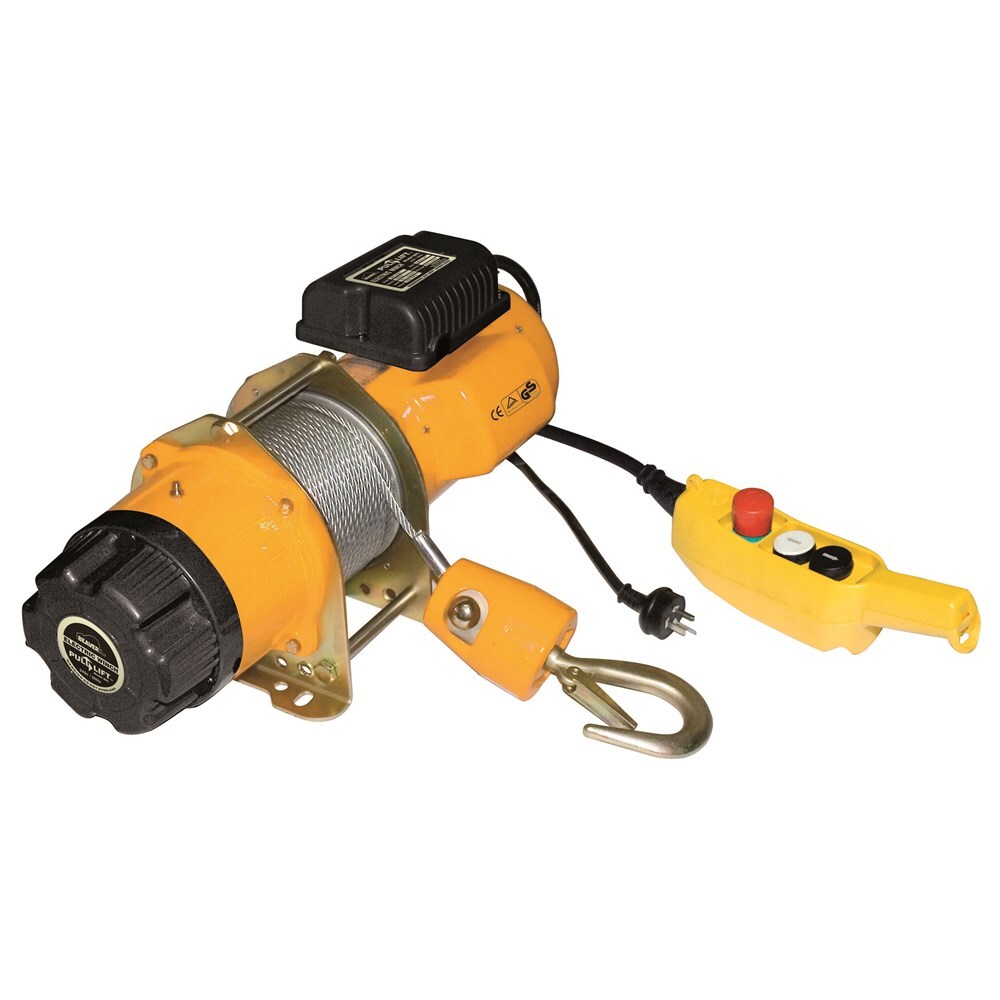

This single-phase electric winch is manufactured by Beaver, and has a robust construction suitable for building sites, slipways, and general industrial use. It also comes with 24V IP65 pendant control with emergency stop.

Specifications:

  Product Code     Rated Capacity   Speed   Motor Power     % ED     Effective Pull Height     Wire Rope Diameter x Length     Weight
BPL1025 0.25t   10-15m/min   1.0HP 25 29m 6mm x 30mm 40kg
BPL1030 0.3t 10-15m/min 1.5HP 25 29m 7mm x 30mm 49kg


The connection of the wire rope to the winch drump is via set screw, to ensure rope retention.


  Rated Capacity   A B C D E F
0.25t   4mm x 10.5D     142mm     142mm     525mm     210mm     246mm
0.3t 4mm x 10.5D 172mm 142mm 540mm 210mm 246mm

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(BPL1025)

SKU BPL1025
Brand Beaver Brands
Shipping Weight 40.0000kg
Shipping Width 0.210m
Shipping Height 0.246m
Shipping Length 0.525m
