3S Industrial Overload Chain Block (White) - 0.5t x 6m

SKU: 508056

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 1 Minimum Order Quantity 1

Calculate Shipping

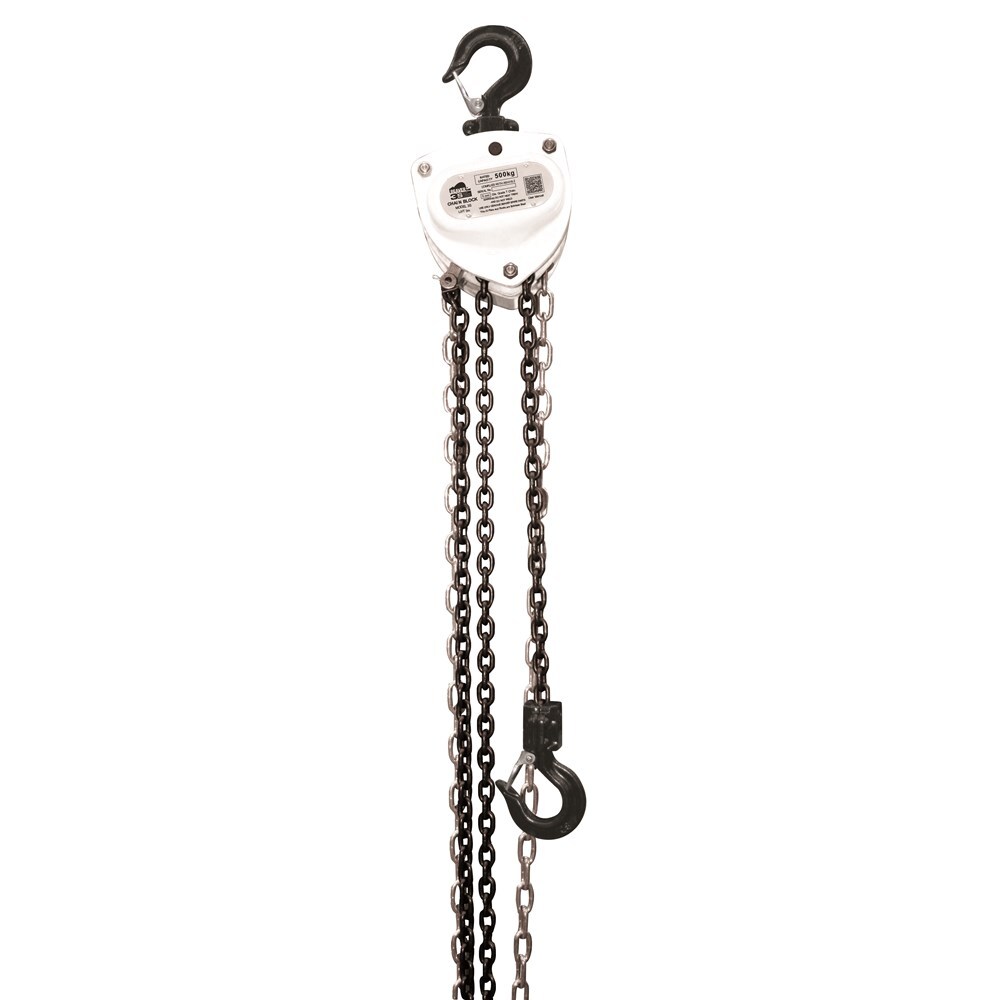

3S Industrial Overload Chain Block



Beaver chain blocks are designed for use on monorails, jibs fixed installations and for maintenance use. They are to be used for vertical lifts only. If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur. This range of chain blocks come with built-in safety overload clutch (limiter) technology, which means greater work safety when lifting or pulling.

The Beaver 3S industrial chain block has improved reinforced side covers, made from heavy duty steel to ensure full protection of the vital gears, shafts, and bearings. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

Specifications:

  Product Code     Rated Capacity     Colour Code     Standard Lift     Effort on Lever to Lift Full Load     No. Load Chain Falls     Load Chain Diameter
508056 0.5t White 6m 240kg 1 5mm x 15mm
508106 1t Violet 6m 250kg 1 6mm x 18mm
508206 2t Green 6m 335kg 1 8mm x 24mm
508306 3t Yellow 6m 335kg 2 8mm x 24mm
508506 5t Red 6m 363kg 2 9mm x 30mm
508606 10t Orange 6m 380kg 4 9mm x 30mm

These chain blocks are colour coded to match international lifting standards for fast and accurate identification of WLL. Every chain block is also operationally tested to its rated capacity and is supplied with a Beaver test certificate, relating to its stamped identification side plate.

  Product Code     Rated Capacity   A B C H   Net Weight
508056 0.5t 132mm   148mm     28mm     345mm   12.6kg
508106 1t 151mm 172mm 32mm 376mm 14.8kg
508206 2t 175mm 210mm 36mm 470mm 23.6kg
508306 3t 176mm 230mm 46mm 565mm 37.2kg
508506 5t 189mm 280mm 46mm 688mm 54.5kg
508606 10t   189mm   463mm 57mm 765mm 104.9kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(5080560)

SKU 5080560
Brand Beaver Brands
Shipping Weight 31.2500kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
