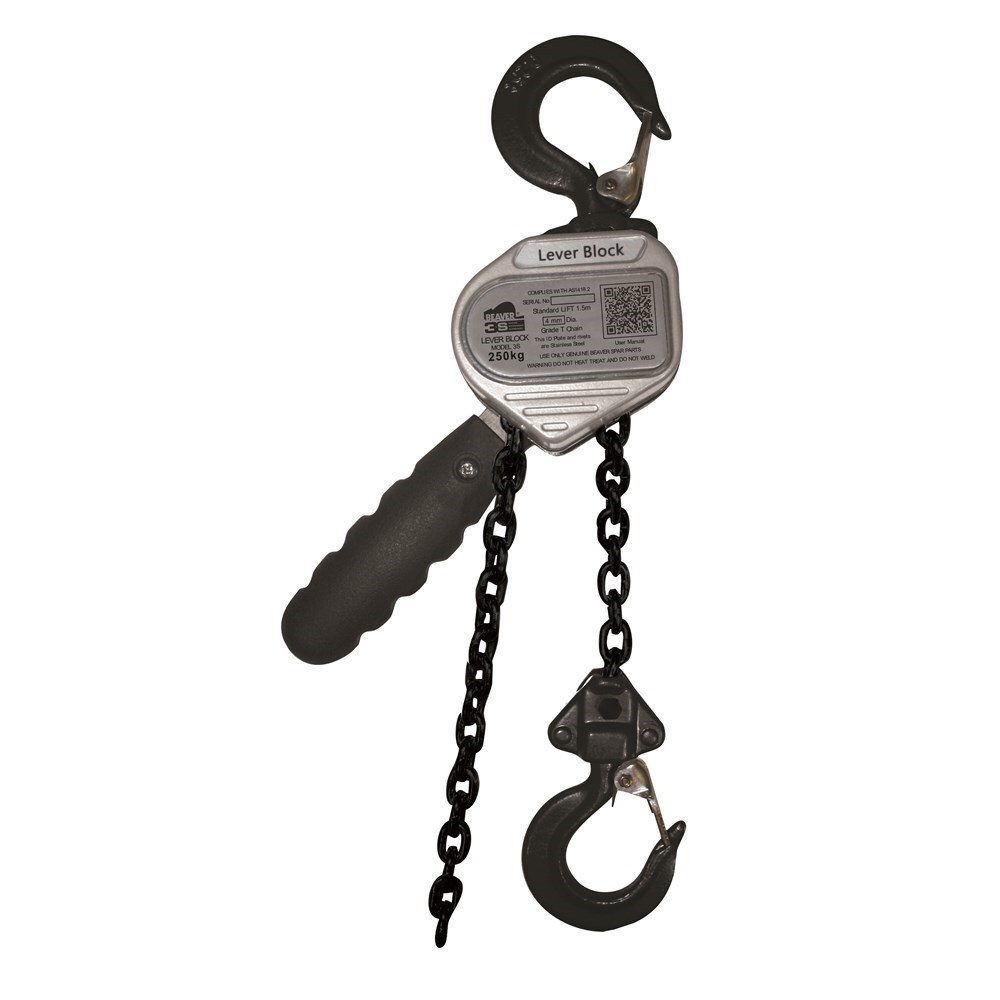

3S Industrial Lever Block (Grey) - 0.25t x 1.5m

SKU: 506025

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 2 Minimum Order Quantity 2

Calculate Shipping

The heavy duty Beaver lever blocks are a versatile lifting and tensioning device widely used in rigging, construction, and mining. The Beaver 3S industrual chain lever block mechanism and gears are enclosed in a robust all-steel compact shell. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

Specifications:

  Product code     Rated Capacity     Colour Code     Standard Lift     Test Load     Effort on Lever to Lift Full Load     No. Load Chain Falls     Load Chain Diameter
506025 0.25t Grey 1.5m 4.9kN 210N 1 4mm
506050 0.5t Grey 1.5m 9.8kN 320N 1 4mm
506080 0.8t White 1.5m 11.3kN 140N 1 6mm x 16mm
506160 1.6t Violet 1.5m 22.5kN 240N 1 8mm x 24mm
506320 3.2t Yellow  1.5m 45kN 320N 1 10mm x 30mm
506630 6.3t Brown 1.5m 1.5kN 340N 2 10mm x 30mm


Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied wtih a test certificate, relating to its stamped identification side plate. This lever block comlpies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.


  Product Code     Rated Capacity   A B C D E H   Net Weight
506025 0.25t 87mm   55.5mm   68mm   145mm   21mm   200mm   1.5kg
506050 0.5t   100.5mm   62.5mm 81mm 160mm   24.5mm   250mm 2.5kg
506080 0.8t 148mm 90mm 136mm 280mm 30mm 325mm 7kg
506160 1.6t 172mm 98mm 160mm 410mm 35mm 380mm 11kg
506320 3.2t 200mm 115mm 180mm 410mm 40mm 480mm 21kg
506630 6.3t 200mm 115mm   235mm   410mm 50mm 620mm 31kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(5060250)

SKU 5060250
Brand Beaver Brands
Shipping Weight 31.2500kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
