3S Industrial Chain Block (Grey) - 0.25t x 1.5m

SKU: 503025

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 2 Minimum Order Quantity 2

Calculate Shipping

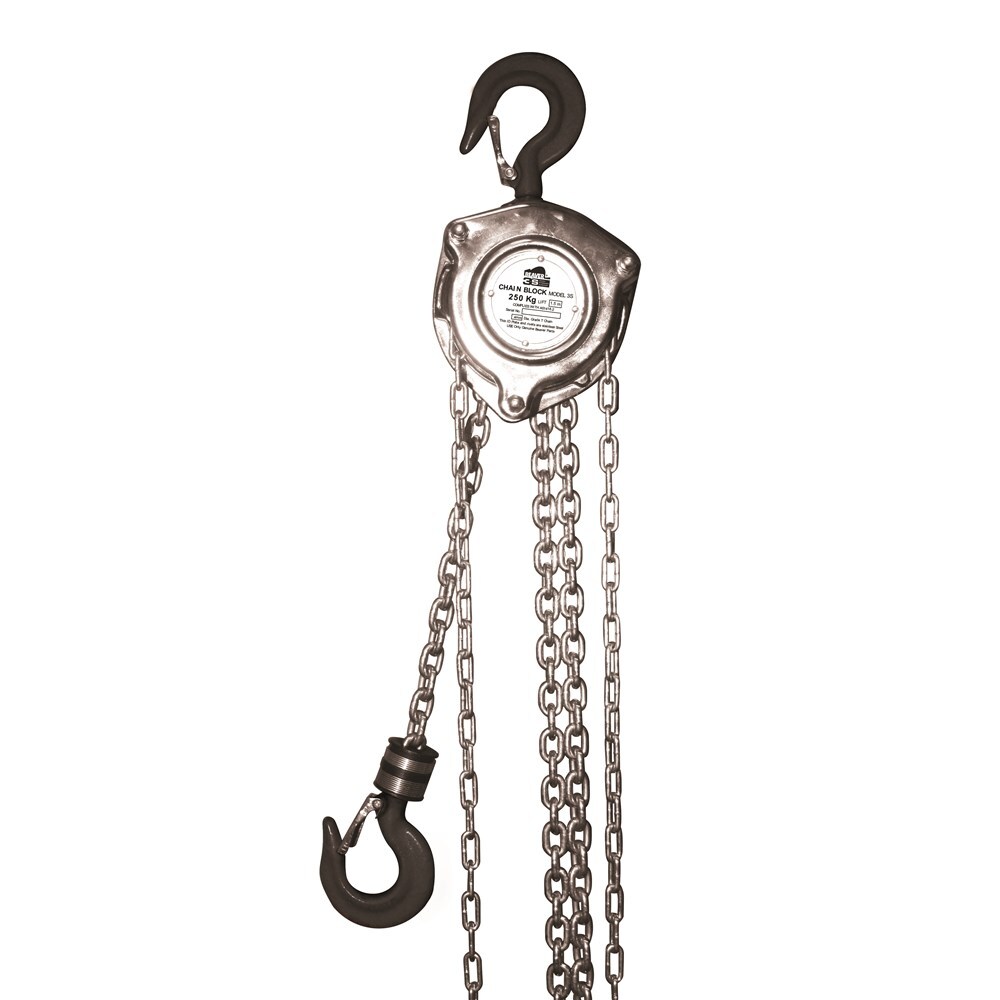

3S Industrial Chain Block



Beaver chain blocks are designed for use on monorails, jibs fixed installations and for maintenance use. They are to be used for vertical lifts only. If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur.

The Beaver 3S industrial chain block has improved reinforced side covers, made from heavy duty steel to ensure full protection of the vital gears, shafts, and bearings. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

Specifications:

  Product Code     Rated Capacity     Colour Code     Standard Lift     Effort on Lever to Lift Full Load     No. Load Chain Falls     Load Chain Diameter
503025 0.25t Grey 1.5m 300kg 1 4mm x 12mm
503053 0.5t White 3m 240kg 1 5mm x 15mm
503103 1t Violet 3m 250kg 1 6mm x 18mm
503203 2t Green 3m 335kg 1 8mm x 24mm
503303 3t Yellow 3m 335kg 2 8mm x 24mm
503503 5t Red 3m 335kg 2 9mm x 30mm


These chain blocks are colour coded to match international lifting standards for fast and accurate identification of WLL. Every chain block is also operationally tested to its rated capacity and is supplied with a Beaver test certificate, relating to its stamped identification side plate.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(503050)

SKU 503050
Brand Beaver Brands
Shipping Weight 31.2500kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
