Bale Clamp (Class 3) - 1600mm

SKU: RBC22-C004

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

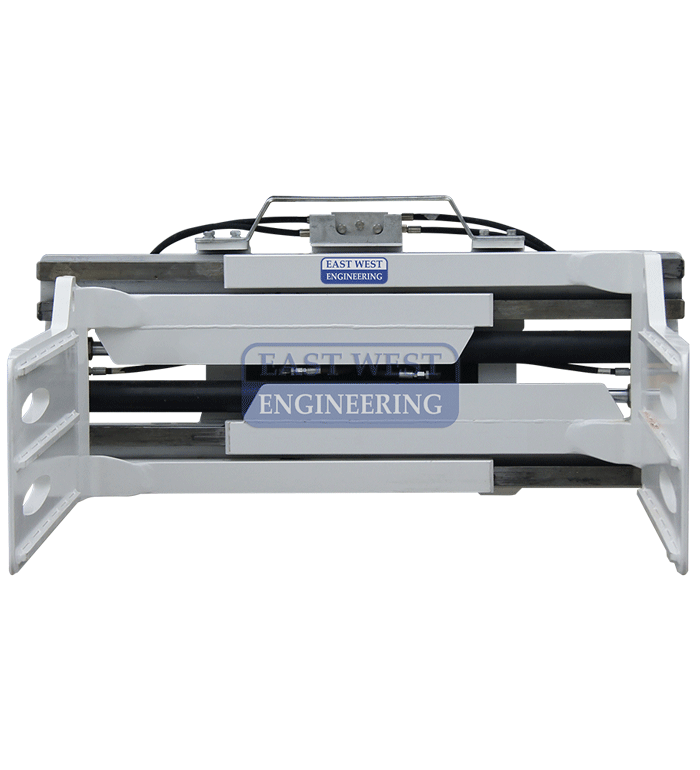

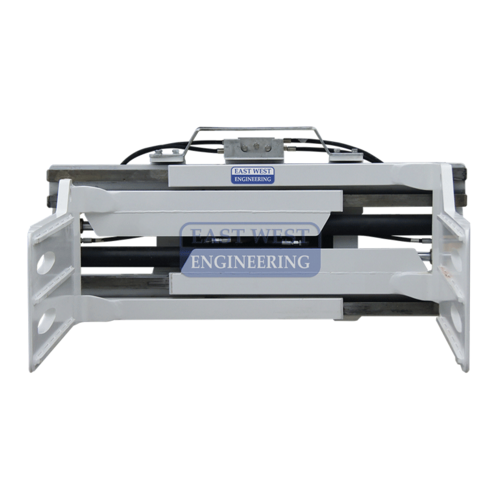

The RBC Bale Clamp range is designed to efficiently handle most baled products used in farming and agriculture.  This includes bales of animal feed such as hay or raw materials such as cotton and wool.

FEATURES:

  • Enables operator to clamp unpalletised loads
  • Enhanced bale clamp includes reinforced structure for heavy duty use
  • Commonly used for handling baled products like waste paper, cotton, wool, hay, textile and metal scrap bales
  • Lateral sliding arm design for smooth clamping and sideshifting function
  • Ribbed arms for secure grip and handling of load
  • Available in a wide range of openings and arm lengths
  • Maximum residual capacity due to minimum weight and lost load
  • Cylinder protection to prevent damage
  • Robust design
  • Sideshift function
  • Wide range of hitches available for fitment to a tractor/loader

SPECIFICATIONS:

 Model  Capacity @ LC  Mounting Class  Opening Range  Arm Height  Arm Length Frame Width Arm Thickness Lost Load  Unit Weight
  (kg @ mm)   (mm)  (mm)  (mm)  (mm) (mm) (mm) (mm)

 RBC20D-B002 2000@500 II 450-1730 415 1180 1040 80 130 460
 RBC20D-B004 2000@500 II 450-1730 415 780 1040 75 130 377
 RBC20D-B007 2000@500 II 430-2260 415 1180 1600 80 130 545
 RBC22D-C004 2200@500 II 490-2300 460 750 1600 75 146 610
 RBC28D-C002 2800@500 III 580-1930 460 1180 1015 80 150 585
 RBC28D-C004 2800@500 III 590-2110 460 1180 1200 80 150 620
 RBC28D-C024 2800@500 III 490-2330 460 750 1600 75 150 610
 RBC30F-C001 3000@500 III 750-2100 460 1200 1265 85 140 776
 RBC35F-C006 3500@600 III 560-2630 460 1000 1820 95 162 1070
 RBC50F-D001 5000@600 IV 580-2500 460 1600 1650 95 182 1530

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(RBC22-C004)

SKU RBC22-C004
Brand East West Engineering
Shipping Weight 680.0000kg
Shipping Width 0.900m
Shipping Height 0.780m
Shipping Length 1.600m
