B-Alloy Lifting Lug - 1.5t WLL

SKU: BALPV015

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 5 Minimum Order Quantity 5

Calculate Shipping

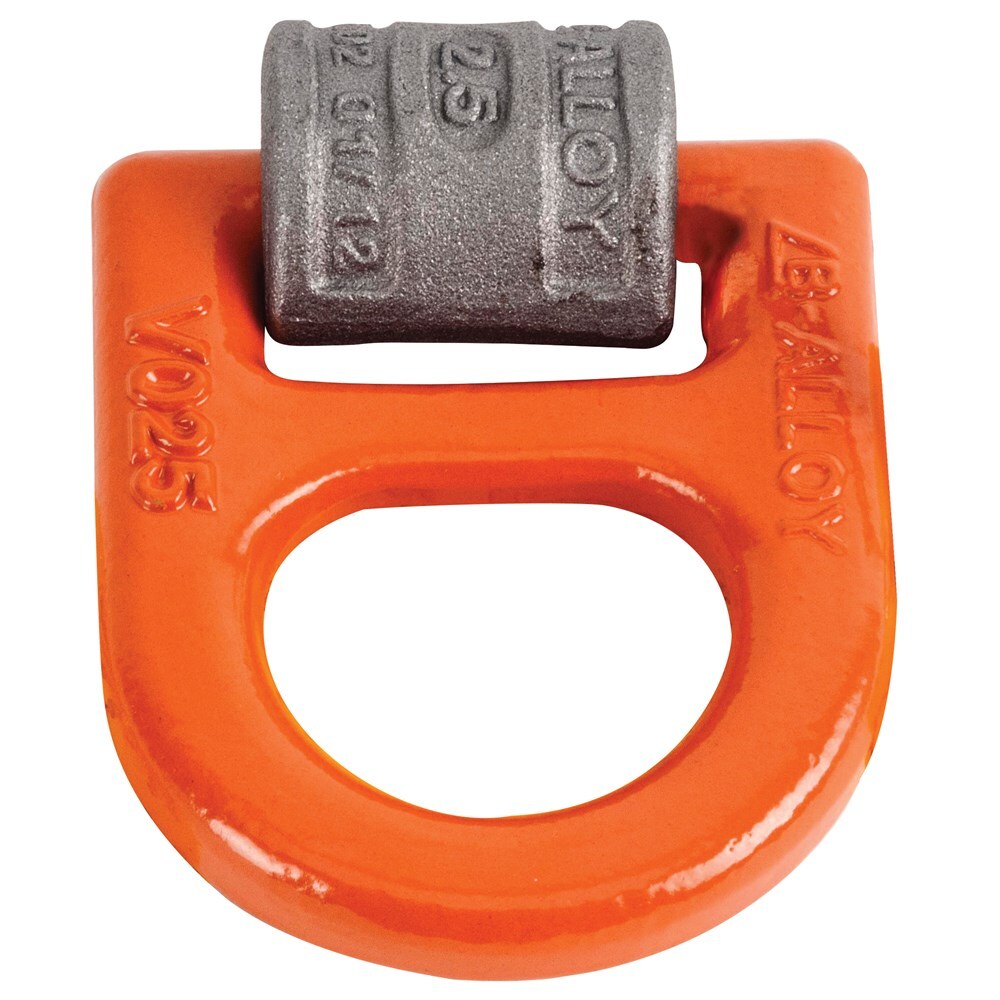

Beaver B-Alloy Grade 100 weld-on lifting and lashing rings are manufactured using quality alloy steel, quenched and tempered, and offers a full working load limit at all angles. Just some of the many applications for this innovative product include mining, offshore exploration, road or rail transport, and maritime associated industries. Ring has a durable powder coated baked enamel finish, and is available in a function and compact design.

Ring and welding block are both marked with B-Alloy-V, WLL, MM/YY of manufacture with individual test number for precise edentification traceability. Test Certificate is available with purchase.

Product code WLL A B C D E F G I M Approx Weight
BALPV015 1.5t 38mm 79mm 66mm 14mm 13.5mm 32mm 25mm 31mm 2mm 0.4kg
BALPV025 2.5t 45mm 92.5mm 77mm 16mm 13.5mm 36mm 27mm 38mm 3.5mm 0.6kg
BALPV040 4t 51mm 102mm 87mm 18mm 16.5mm 42mm 32mm 40.5mm 2mm 0.9kg
BALPV067 6.7t 67mm 138mm 115mm 24mm 22.5mm 61mm 44mm 55mm 4mm 2kg
BALPV100 10t 67.5mm 142mm 129mm 26.5mm 57.5mm 75mm 53mm 57.5mm 4mm 3kg
BALPV160 16t 100mm 216.4mm 190mm 40mm 26mm 95mm 69mm 85mm 5mm 6.9kg


These components are easily welded into required position with the aid of height lugs on the weld block. Weld instructions are also included with each unit. Please note that welding should only be carried out according to EN 287 or AWS Standards by an authorised welder.

Product Code WLL Weld mm HV+aL Weld Size Weld Length Weld Volume
BALPV015 1.5t HV5+3? HV 5+a3 2 x 33mm ca. 1.2cm3
BALPV025 2.5t HV7+3 HV 7+a3 2 x 40mm ca. 2.6cm3
BALPV040 4t HV8+3 HV 8+a3 2 x 40mm ca. 3.2cm3
BALPV067 6.7t HV12+4 HV 12+a3 2 x 60mm ca. 8.7cm3
BALPV100 10t HV16+4 HV 16+a3 2 x 60mm ca. 15.5cm3
BALPV160 16t HV25+6 HV 25+a3 2 x 90mm ca. 56cm3



(BALPV010)

SKU BALPV010
Brand Beaver Brands
Shipping Weight 1.5000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
