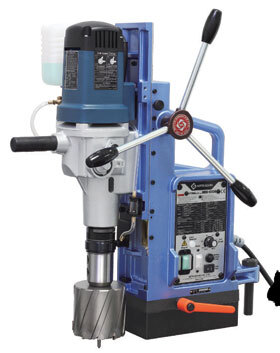

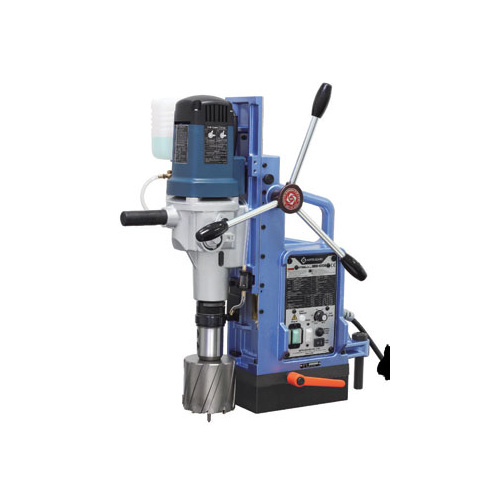

Nitto Atra Ace (Manual Feed) Magnetic Base Drill (Model ARA-100A)

SKU: NTARA-100A

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

Description




  • This two speed drill comes with speed adjustment, height adjustment and reversible handles. Its position can also be adjusted 20mm back and forth and left to right. Safety features include load indication and LED condition system.

  • This ATRA ACE can take Ozbroach and Jetbroach cutters as well as Twist Drill Bits. Original OZBROACH cutters drastically shorten drilling time when compared to similar sized conventional twist drills. An optional One-Touch keyed chuck allows the use of up to 32mm twist drills.

 Features


  • Next generation Two speed Magnetic Base Drill helps meet productivity and safety goals
  • Compact design with advanced safety system
  • Cuts up to 100mm diameter thru 75mm plate
  • Reversible feed handles
  • Unique design allows use of twist drills up to 32mm dia.
  • Supplied in carry case

Applications


  • On-site hole cutting in steel plates, H-Beams shaped bars, framework, shipbuilding, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.

Standard Accessories


  • Coolant Tank complete
  • Pilot Pin 0625 / 0650 / 0825 / 0850 : 1 pc. each
  • 3mm Hex Socket Screw Key : 1 pc.
  • Gaurd Ass'y : 1 pc.
  • 8mm x 10mm Spanner : 1 pc.
  • Side Handle Ass'y : 1 set
  • Safety Strap : 1 pc.

Optional Accessories


  • OZBROACH: One-touch type: 25L, 50L and 75L
  • 32mm keyed chuck with one-touch adaptor TB09727
  • Hole-Cutting Capacity

  • One-touch type OZBROACH:
    * Hole Dia.: Max. 100mm
    Plate Thickness Max. 75mm

 Model

 ARA-100A

 Power Source (Single Phase)

 220~240V AC 50-60Hz

 Rated Power Consumption

 1800W

 Rated Current

 4.3A

 No Load Speed

 Low - 110-210RPM HIGH - 330-660RPM

 Magnetic Power Consumption

 80W

 Magnetic Holding Power

 1,733kg/f

 Magnetic Dimension

 110mm X 220mm

 Hole Cutting Capacity

 100mm

 Max. Plate Thickness

 75mm

 Mass (Weight)

 30kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(NTARA-100A)

SKU NTARA-100A
Barcode # 9340000000000
Brand Nitto
Shipping Weight 48.0000kg
Shipping Width 0.300m
Shipping Height 0.800m
Shipping Length 0.800m
