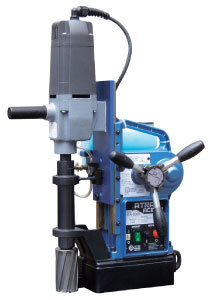

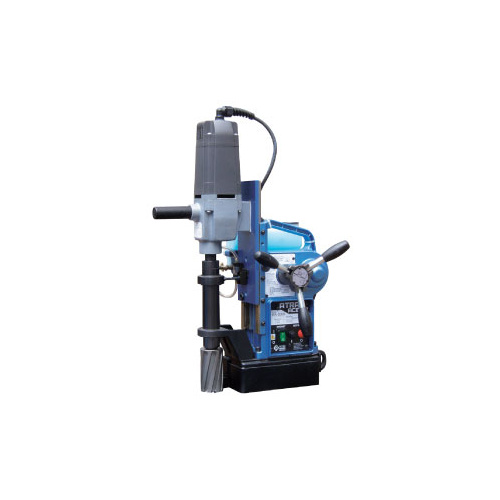

Nitto Atra Ace Automatic Magnetic Base Drill (Model: WA-5000

SKU: NTWA-5000

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping
Description

           Drilling time and cutting performance are enhanced by the automatic feed function. The
           WA-5000 slow start function, load sensor and overload stop assist greatly in the prevention of cutter damage.
           NITTO KOHKI has incorporated a built in motion sensor for fail-safe protection.
           Machine can be used in both automatic and manual modes with the over-load protection still active in the either mode.
           Specifically made for high volume steel fabrication.
Features

  • High-performance mechanism & high-tech components
  • Superior 75mm deep hole drilling- automatically cuts holes from 14mm dia. - 50mm dia.
  • Boosts productivity
  • One-touch cutter replacement
  • Powerful two speed drill motor 350/650RPM
  • Built-in lubrication system
  • Built-in motion sensor prevents cutter damage
  • Supplied in carry case
Standard Accessories

  • Pilot Pin 0625 / 0650 / 0825 / 0850 : 1 pc each.
  • Chain Ass'y : 1 set
  • Chip Breaker : 1 pc.
  • Side Handle Ass'y : 1 set
  • 3mm / 4mm Hex Socket Screw Key : 1 pc.
  • 8mm x 10mm Spanner : 1 pc.
  • Cutting Oil 0.5 litre : 1 can
  • Plastic Case : 1 pc.
  • Gaurd Ass'y : 1 set
Optional Accessories

  • OZBROACH: One-touch type: 25L and 50L
  • JETBROACH: One-touch type: 35L, 50L and 75L
  • Chuck Adaptor TP16233 (Manual mode only)
  • 13mm keyed chuck NPCHUCKJ6
Hole-Cutting Capacity

  • One-touch type JETBROACH:
    * Hole Dia.: Max. 50mm - Plate Thickness Max. 75mm
  • One-touch type OZBROACH:
    * Hole Dia.: Max. 50mm - Plate Thickness Max. 50mm
  •
Model WA-5000
Power Source (Single Phase) 220~240V AC 50/60Hz
Rated Power Consumption 1,150W
Rated Current 5.4A
No Load Speed 350 / 650RPM
Magnetic Power Consumption 75W
Magnetic Holding Power 1,000 kgf
Magnetic Dimension 101mm x 201mm
Mass (Weight) 23kg

(NTWA-5000)

SKU NTWA-5000
Barcode # 9340000000000
Brand Nitto
Shipping Weight 23.0000kg
Shipping Width 0.300m
Shipping Height 0.600m
Shipping Length 0.500m
