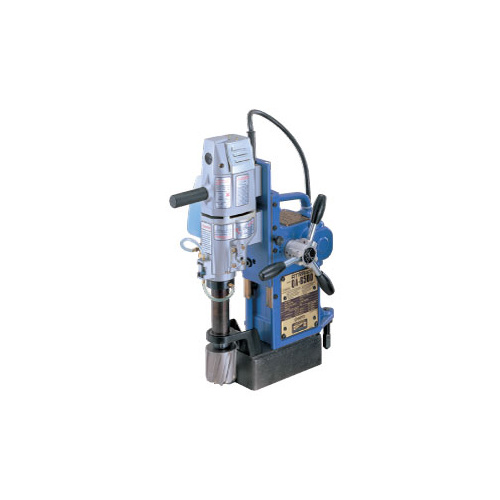

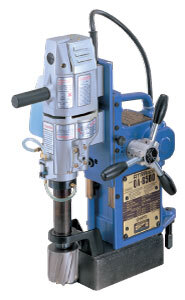

Nitto Atra Ace Automatic Base Drill (Model: QA-6500)

SKU: NTQA-6500

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping
Description

           Fully automatic feed and return function boost productivity. An automatic step feed and load detection provides a smooth and precise hole, with a cutting capacity of up to 65mm Dia. in plate up to 50mm thick.
           NITTO KOHKI has incorporated a built in motion sensor for fail-safe protection.
           Machine can be used in both automatic and manual modes with the over-load protection still active in the either mode.
           Specifically made for high volume steel fabrication.
           This unit incorporates a LED load detector providing the operator with a dynamic visual status of the hole cutting process.

           Features
  • One-Touch Cutter Replacement
  • Fully automatic drill for increased productivity and reduced cost
  • Features include load detection, step feed
  • Cuts up to 65mm dia thru 50mm plate
  • Powerful 2 speed drill 400/750RPM
  • Lubrication System
Standard Accessories

  • Pilot Pin 08050 A3 : 1 pc.
  • Chain : 1 pc.
  • 3mm / 4mm Hex Socket Screw Key : 1 pc.
  • 8mm x 10mm Spanner : 1 pc.
  • Cutting Oil 0.5 : 1 can
  • Tool Box : 1 pc.
  • Chip Breaker : 1 pc.
  • Side Handle : 1 pc.
  • Oil Tank Ass'y : 1 set
Optional Accessories

  • OZBROACH: One-touch type: 25L and 50L
  • JETBROACH: One-touch type: 35L and 50L
  • Chuck Adaptor TP16233 (Manual mode only)
  • 13mm keyed chuck NPCHUCKJ6
Hole-Cutting Capacity

  • One-touch type JETBROACH:
    * Hole Dia.: Max. 65mm - Plate Thickness Max. 50mm
  • One-touch type OZBROACH:
    * Hole Dia.: Max. 50mm - Plate Thickness Max. 50mm
Additional Information

Nitto Kohki's Atra Ace boosts productivity in the Steel Fabrication industry.



Model QA-6500
Power Source (Single Phase) 220~240V AC 50/60Hz
Rated Power Consumption 1,010W
Rated Current 4.5A
No Load Speed 400/750RPM
Magnetic Power Consumption 75W
Magnetic Holding Power 1,000 kgf
Magnetic Dimension 100mm x 200mm
Mass (Weight) 26kg

(NTQA-6500)

SKU NTQA-6500
Barcode # 9340000000000
Brand Nitto
Shipping Weight 26.0000kg
Shipping Width 0.300m
Shipping Height 0.500m
Shipping Length 0.500m
