360° Rotator - Class 3

Current lead time is 2-3 weeks

SKU: XZQ35-C001

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

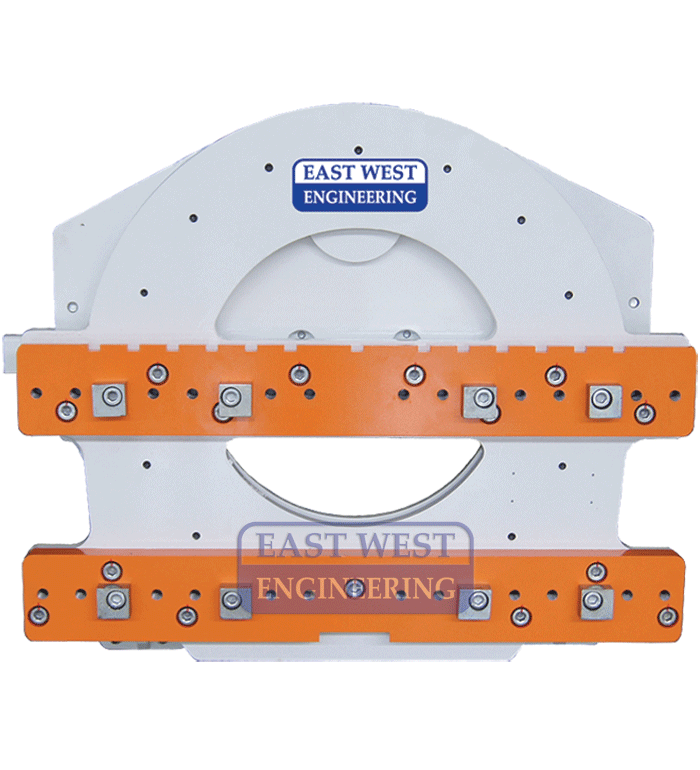

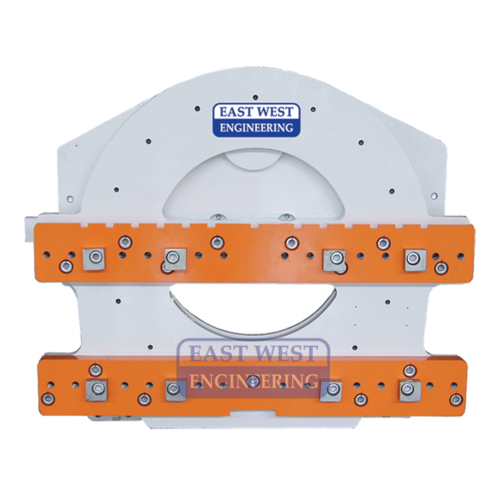

The XZQ 360° Rotator is designed to increase the functionality of your forklift to hydraulically rotate loads while retaining the standard forklift use to handle palletised and conventional loads.

FEATURES:

  • Used to turn load or pour load’s content
  • Continuous 360° rotation in both directions to allow use in any application
  • Concealed drive motor for added protection
  • Excellent operator visibility
  • One additional hydraulic circuit required
  • Commonly used for container turning or emptying operations in food, chemical, sanitation, recycling, smelting and casting industries

SPECIFICATIONS:

 Model Capacity @ LC Mounting Class Carriage  Min. Truck Max. Fork  Lost Load  Unit Weight
  (kg @ mm)   Width  Carriage Width Spacing (mm) (kg)
      (mm) (mm) (mm)
 XZQ25E-B002 2500 @ 500 II 1115 800 1030 160 311
 XZQ35E-C001 3500 @ 500 II/III* 1100 800 1030 226 389
 XZQ45E-C001 4500 @ 600 III 1200 1016 1130 192 550
 XZQ60E-D001 6000 @ 600 III/IV** 1200 1016 1021 235 577
 XZQ70E-D001 7000 @ 600 IV 1550 1150 1330 272 840
 XZQ80E-D001 8000 @ 600 IV 1800 1150 1600 272 820

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(XZQ35-C001)

SKU XZQ35-C001
Brand East West Engineering
Shipping Weight 380.0000kg
Shipping Width 1.200m
Shipping Height 0.350m
Shipping Length 1.200m
