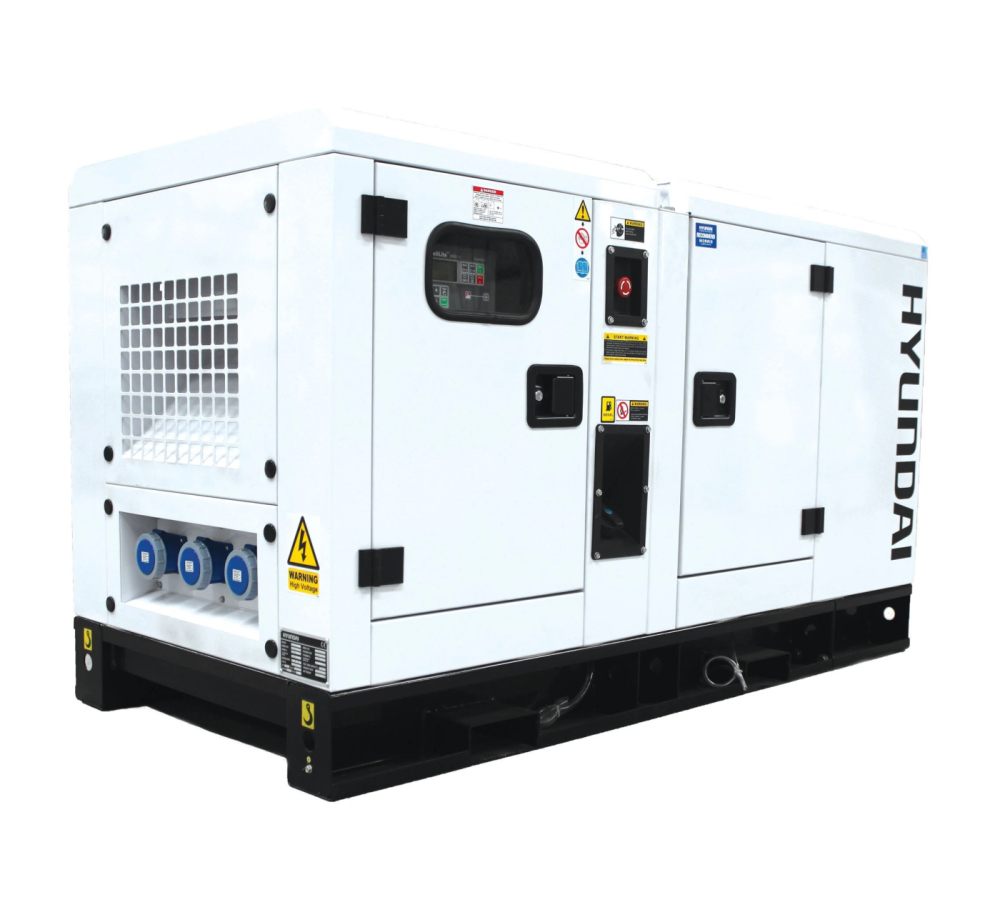

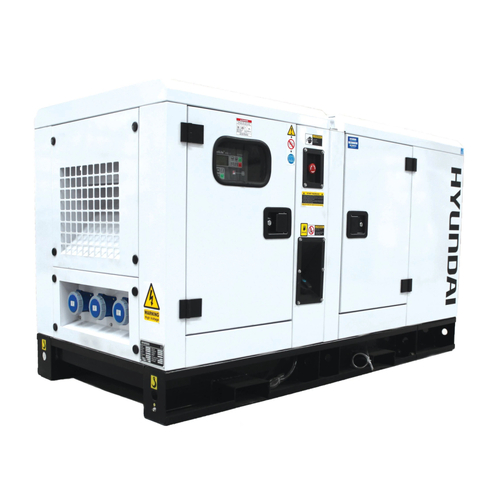

Hyundai Three-Phase Standby Generator - 22kVA
SKU: DHY22KSE
The Hyundai DHY22KSE is a three phase diesel generator with a maximum output of 22kVA. Designed for domestic or professional use, the DHY22KSE is powered by a 21hp HY490 diesel engine and is equipped an AVR alternator to produce clean energy. This means that any sensitive electronic equipment, such as televisions, PCs and laptops, can safely be powered by the DHY22KSE.
The DHY22KSE can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system. An ATS system will automatically detect a loss of power from the mains, turn your DHY22KSE on automatically, and then turn it off again when power returns from the mains.
Housed in a weather-proof silenced canopy, the DHY22KSE produces only 65dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.
The DHY22KSE benefits from being an economical diesel generator, capable of running on red diesel which is significantly cheaper than road diesel and is safer to store than petrol.
An MRS 10 Intelilite control panel with its intuitive interface gives the user an unprecedented level of control over numerous variables including the voltage and current, as well as oil pressures and the engine running hours.
Running at 1500rpm, the engine is stressed less than in 3000rpm generators and this helps extend the lifespan of the machine if properly serviced.
Specifications:
| Model | DHY22KSE | |
| Power Output kW/kVA | Prime Power 18kW/20kVA Stand By Power 20kW/22kVA | |
| Start | Electric | |
| Engine Displacement CC | 2540cc | |
| Engine Make | Hyundai | |
| Engine Type | HY490 diesel engine | |
| Fuel Tank Capacity | 77.5 Litres | |
| Fuel Type | Diesel | |
| Features | Silenced Weather Proof Canopy | |
| Noise Level in dB(A) | 67dB(A) @ 7m | |
| Run Time | 23 Hours @ 50% Load | |
| Voltage 50Hz | 240/415 | |
| Connection Method | Hardwire / 1 x 32Amp 3 Phase 1 x 15Amp Single Phase IP67 Outlets | |
| Warranty | 1 Year | |
| Dimensions L x W x H (mm) | 1900 x 900 x 1100 | |
| Weight | 760 kg | |
---
If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.
Alternatively, get in touch with our friendly team via phone on 1300 378 900
Why is this product priced on application (POA)?
For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.
---
Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.
(DHY22KSE)
| SKU | DHY22KSE |
| Brand | Hyundai Power Products |
| Shipping Weight | 800.0000kg |
| Shipping Width | 1.000m |
| Shipping Height | 1.200m |
| Shipping Length | 2.000m |
| Shipping Cubic | 1.881000000m3 |
