180° Rotator C3 w/ Bin Support Arm - Class 3

Current lead time is 2-3 weeks

SKU: XR3-35-BHD

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

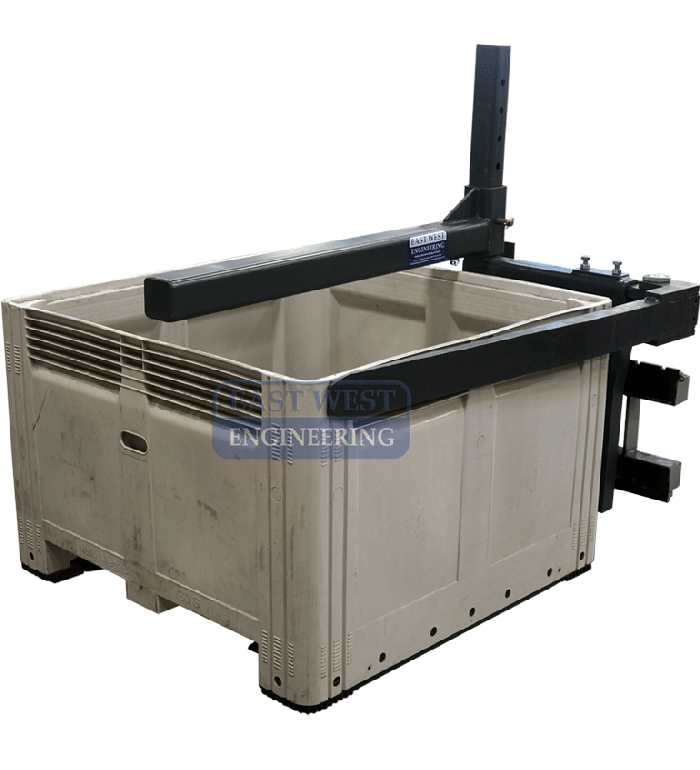

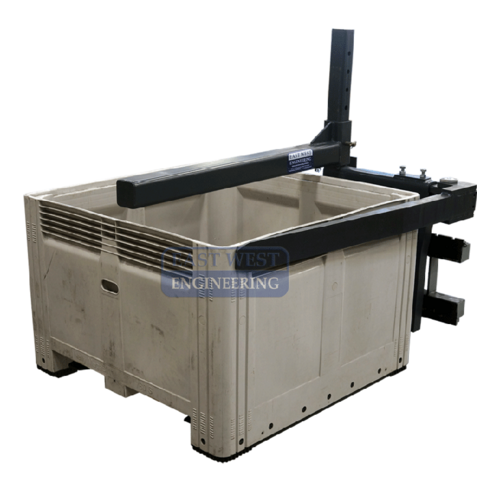

The XR3 180° Rotator with Bin Support Arm is designed to increase the functionality of your forklift to hydraulically rotate a standard nally bin 180° without damaging the bin.

FEATURES:

  • Ideal for load inverting and dumping applications
  • 180° rotation used to turn or pour load’s content
  • Commonly used for emptying operations in food industries
  • Features a side arm and adjustable top arm to stabilise the load during rotation
  • 5 adjustment levels for top support arm opening range
  • Single hydraulic cylinder produces a smooth, high torque rotation
  • Self-lubricating bearings and chrome shafts eliminate maintenance
  • Excellent operator visibility
  • One additional hydraulic circuit required

SPECIFICATIONS:

 Model Capacity @ LC Mounting Class Carriage  Min. Truck Upper Arm Lost Unit
  (kg @ mm)   Width  Carriage Width  Adjustment Load  Weight
      (mm) (mm)  Range (mm) (mm)
           (mm)
 XR3-23-BHD 2300 @ 500 II 1040 800 700-1100 162 323
 XR3-35-BHD 2500 @ 500 III 1040 800 815-1215 212 350

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(XR3-35-BHD)

SKU XR3-35-BHD
Brand East West Engineering
Shipping Weight 320.0000kg
Shipping Width 1.200m
Shipping Height 0.650m
Shipping Length 1.200m
